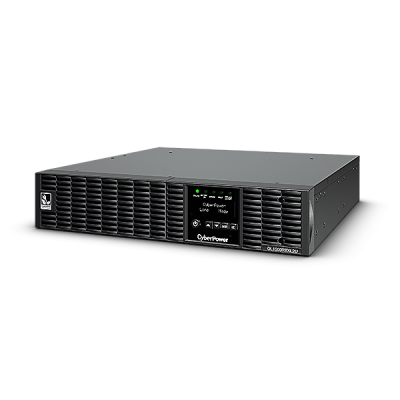

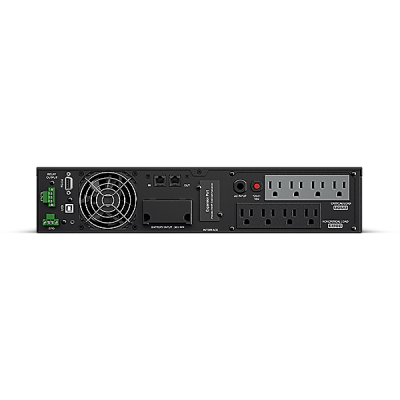

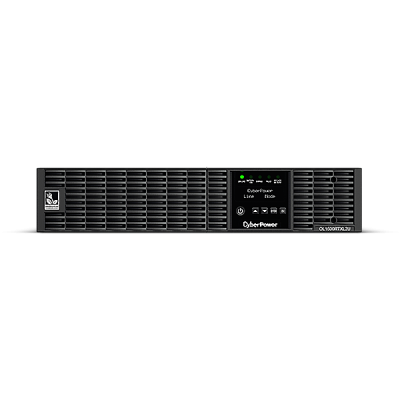

Cyber Power UPS OL Serires RT 1500VA/1350W 120V (OL1500RTXL2U)

Brand
 Cyber Power

Description
 Cyber Power UPS OL Serires RT 1500VA/1350W 120V

SKU
 OL1500RTXL2U

General
UPS Topology                                             Double Conversion
Energy Saving                                            Yes, ECO Mode Efficiency >95%
Energy Star Qualified                                   Yes

Input
Nominal Voltage                                         100 V to 125 V
Voltage Range                                           60 V to 69 V, 0% to 60% load
                                                               70 V to 79 V, 0% to 70% load
                                                               80 V to 89 V, 0% to 80% load
                                                               90 V to 95 V, 0% to 90% load
                                                               96 V to 150 V, 0% to 100% load
Frequency Range                                        40 Hz to 70 Hz (auto-sensing)
Power Factor                                              0.99
Cold Start                                                  Yes

INPUT - CONT.
Plug Type NEMA                                         5-15P
Cord Length (ft)                                          10
Cord Length (m)                                         3

Output
VA                                                           1500 (1.5 kVA) at 120, 125 V 1350 (1.35 kVA) at 115, 110 V 1200 (1.2 kVA) at 100 V
Watts                                                        1350 (1.35 kW) at 120, 125 V 1215 (1.215 kW) at 115, 110 V 1080 (1.08 kW) at 100 V
Power Factor                                              0.9
Waveform (Battery Mode)                             Sine wave
Nominal Voltage (Battery Mode)                     100, 110, 115, 120, 125 V ±2% (configurable)

OUTPUT - CONT.
Frequency                                                 50/60 Hz ±0.25 Hz (auto-sensing/configurable)
ECO Mode Bypass Voltage Range                  ±10%, ±15% (configurable)
Harmonic Distortion (THD)                            <3% at linear load, <5% at non-linear load
Crest Factor                                               3:1
Outlets - Total                                            8
Outlet Type                                               (8) NEMA 5-15R
Bypass                                                      Internal bypass (automatic and manual)
Maintenance Bypass                                    Optional MBP15A6
Transfer Time                                             0ms

Battery
Runtime at Half Load                                   11 min
Runtime at Full Load                                    3.4 min
Battery Type                                              Sealed lead acid
Battery Size                                               12 V/9 Ah
Battery Quantity                                         3
Replaceable                                               Yes
Replacement Battery                                   RB1290X3L
Hot Swappable                                           Yes
Typical Recharge Time                                 4 h (0% to 90%)
Smart Battery
Management (SMB) Mode                             Yes
Extended Battery Module (EBM)                    Optional BP36V60ART2U

Certifications
Safety                                                       UL 1778 CSA C22.2 NO.107.3 FCC Part 15 Class B
Environmental                                            RoHS Compliant

Dimensions (WxHxD, mm)
 432x 89x 429 (mm)

Weight
 17.96 (kg)

Warranty
 2 Year onsite with battery

Datasheet : OL1500RTXL2U SMART APP ONLINE UPS
