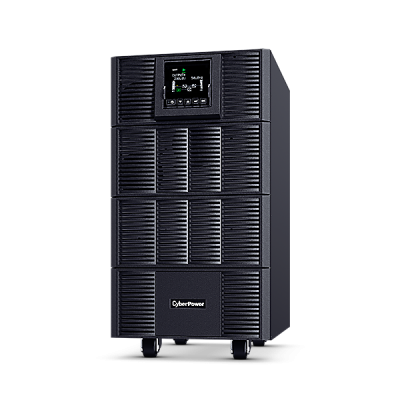

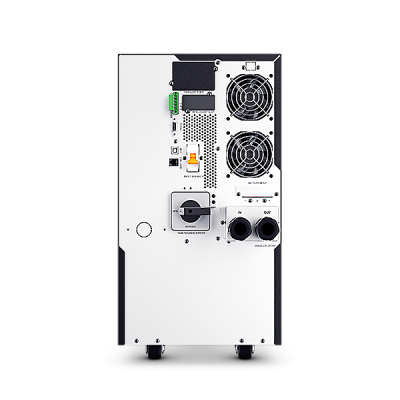

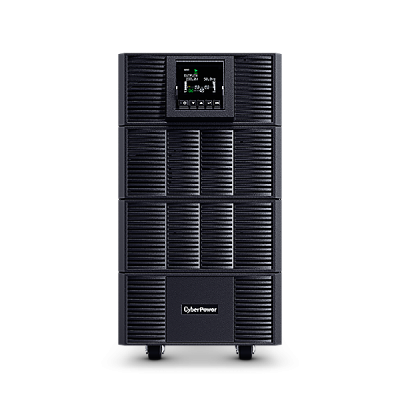

Cyber Power UPS OLS Tower 10000VA/10000W PF1 (OLS10KEA)

Brand
 Cyber Power

Description
 Cyber Power UPS OLS Tower 10000VA/10000W PF1

SKU
 OLS10KEA

General
UPS Topology                                             Online Double Conversion
Energy Saving Technology                            ECO Mode E­ciency > 98%
Active PFC Compatibility                              Yes
Parallel Expansion (Max. Units)                       4 (Optional)

Input
Generator Compatibility                               Yes
Nominal Input Voltage (Vac)                          230
Input Voltage Range (Vac)                            110 ~ 300
Input Frequency (Hz)                                   50 ± 10, 60 ± 10
Input Frequency Detection                            Auto-sensing
Rated Input Current (A)                                49.5
Input Power Factor                                      0.99
Input PFC Function                                      Yes
Input Connector Type                                  Hardwire Terminal Block

Output
Capacity (VA)                                             10000
Capacity (Watts)                                         10000
On Battery Waveform                                  Pure Sine Wave
On Battery Voltage(s) (Vac)                           200 ± 1%, 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1%
Output Voltage Setting                                Configurable
On Battery Frequency (Hz)                           50 ± 0.5%, 60 ± 0.5%
Output Frequency Setting                            Configurable
Power Factor                                              1
Overload Protection                                    Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode)                   105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Battery Mode)               105~130% Load for 10 sec, >130% Load for 1.5 sec
Overload Protection (Bypass Mode)                110~120% Load for 30 min, 120~130% Load for 2 min, 130~150% Load for 15 sec, >150% Load Immediately
Harmonic Distortion (Linear Load)                  THD＜1.5%
Harmonic Distortion (Non-linear Load)             THD＜3%
Outlet(s) Total                                            1
Outlet Type                                               Hardwire Terminal Block x 1
Typical Transfer Time (ms)                            0

Battery
Runtime at Half Load (min)                            7.8
Runtime at Full Load (min)                             1.8
Typical Recharge Time (Hours)                       4
Adjustable Charging Current (A)                    1 ~ 4
Smart Battery Management (SBM)                  Yes
Automatic Battery Self-test During Power-on    Yes

Battery Type
Compatible Extended Battery Module (EBM)    Yes
Max. EBM Quantity (pcs)                               10
Surge Protection & Filtering
Surge Suppression (Joules)                           1335
EMI/RFI Filtration                                         Yes

Management & Communications
LCD Panel                                                  Yes
LCD Types                                                 Color LCD
HID Compliant USB Port(s)                             1
Serial Port                                                 RS232
Dry Contact (with Relay)                               Yes
Emergency Power O (EPO) Port                     Yes
Power Management Software                        PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring                     Yes - with optional RMCARD205
PowerPanel Cloud Service                            Yes - 90 Days Free Trial with PowerPanel Personal/Business

Physical
Form Factor                                               Tower

Environmental
Operating Temperature (°C)                          0 ~ 40
Operating Relative Humidity (Non-condensing) (%)     0 ~ 95

Certifications
Certifications*                                            CE
RoHS                                                        Yes

Dimensions (WxHxD) (mm.)
 270 x 520 x 460

Warranty
 2 Years onsite
