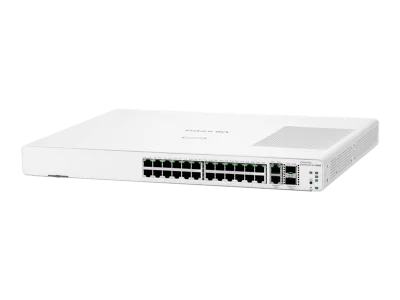

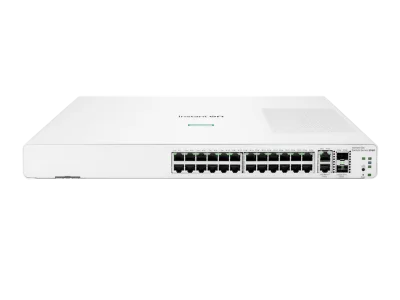

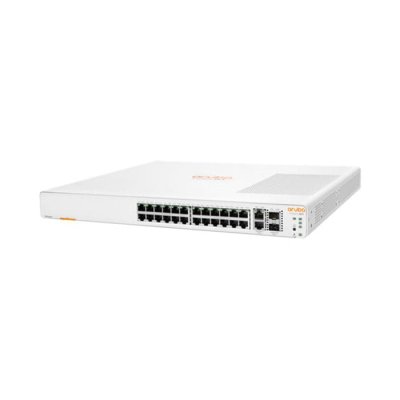

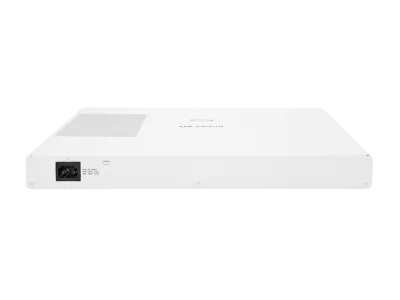

Aruba JL806A, Instant On 1960 24G 2XGT 2SFP+ Switch

Brand
 Aruba

Description
 Aruba JL806A, Instant On 1960 24G 2XGT 2SFP+ Switch

 SKU
 JL806A

I/O ports and slots
 24 RJ-45 autosensing
 10/100/1000BASE-T ports
 (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T);
 Duplex: 100BASE-TX: half or full;
 1000BASE-T: full only
 10GBASE-T: full only
 2 SFP+ 10GbE ports 2 RJ-45
 autosensing 100/1000/10GBASE-T ports

Processor and memory
 Single-Core ARM v7 Cortex-A9 @800MHz; 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB

Throughput (Mpps)
 95 Mpps

Maximum Stacking Capacity
 80 Gbps

Maximum Standalone Switching Capacity
 128 Gbps

Routing Table size
 32 IPv4/IPv6

MAC address table size
 16,000 entries

Reliability MTBF (years)
 123.0

Acoustics
 Fanless

Environment
 Operating temperature: 0-40°C, 0-10,000 ft
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting
 Supports wall-mounting with ports facing either up or down
 Supports under-table mounting using the brackets provided
 Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Device management
Instant On Cloud; Web browser; SNMP Manager

Electrical characteristics
 Frequency 50/60 Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 0.6A/0.2A
 Maximum power rating 100-127V: 60W, 200-220V: 80W
 Idle power 100-127V: 30W, 200-220V: 40W
 PoE power Total -

Power supply
 Internal power supply

Dimensions (D x W x H)
 13.79 x 17.42 x 1.73 in (35.05 x 44.25 x 4.395 cm)

Weight
 8.7 lb (3.9 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1960
