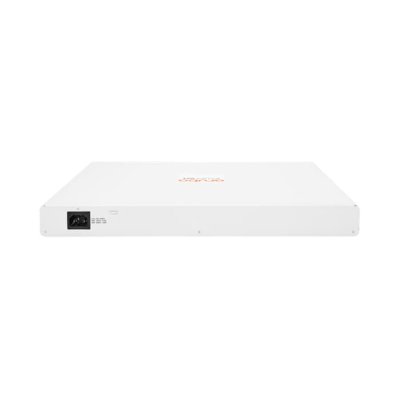

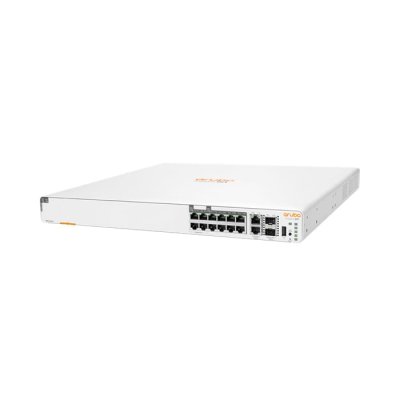

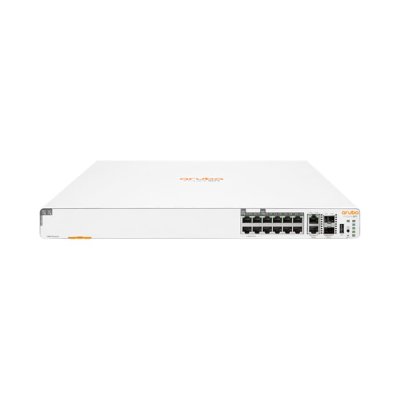

Aruba S0F35A, Instant On 1960 8G 4p2.5 2XT 2XF POE 480W (8x1G POE, 4x1G/2.5G POE, 2x10G Base-T, 2SFP+)

Brand
 Aruba

Description
 Aruba S0F35A, Instant On 1960 8G 4p2.5 2XT 2XF POE 480W (8x1G POE, 4x1G/2.5G POE, 2x10G Base-T, 2SFP+)

 SKU
 S0F35A

I/O ports and slots
 4 RJ-45 autosensing 1G/2.5GBASE-T ports with IEEE 802.af/at/bt CL6 PoE
 8 RJ-45 autosensing 10/100/1000BASE-T ports with IEEE 802.af/at CL4 PoE
 (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3bz Type 2.5GBase-T, IEEE 802.an 10GBASE-T);
 Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only
 2 SFP+ 10GbE ports
 2 RJ-45 autosensing
 100/1000/10GBASE-T ports

Processor and memory
 Single-Core ARM v7 Cortex-A9 @800MHz 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB

Throughput (Mpps)
 172 Mpps

Maximum Stacking Capacity
 80 Gbps

Maximum Standalone Switching Capacity
 116 Gbs

Routing Table size
 32 IPv4/IPv6

MAC address table size
 16,000 entries

Reliability MTBF (years)
 40.8

Acoustics
 LWAd = 3.4 Be

Environment
 Operating temperature: 0-40°C, 0-10,000 ft
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included.
 Supports table-top mounting
 Supports rack-mounting
 Supports wall-mounting with ports facing either up or down
 Supports under-table mounting using the brackets provided

Device management
 Instant On Cloud; Web browser; SNMP Manager

Electrical characteristics
 Frequency 50/60 Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 6.4A/3.0A
 Maximum power rating 100-127V: 635W, 200-220V: 623W
 Idle power 100-127V: 34W, 200-220V: 40W
 PoE power Total 480 W PoE Power

Power supply
 Internal power supply

Dimensions (D x W x H)
 13.79 x 17.42 x 1.73 in (35.05 x 44.25 x 4.395 cm)

Weight
 11.55lb (5.24kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1960
