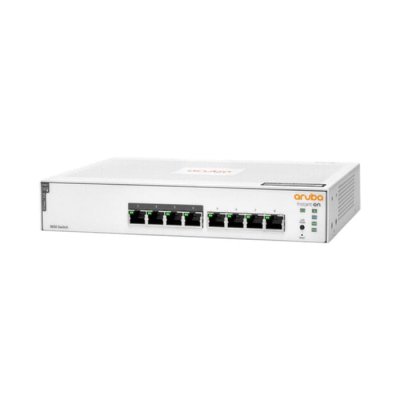

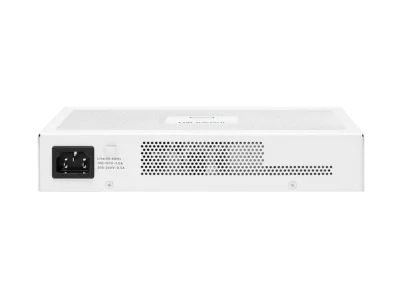

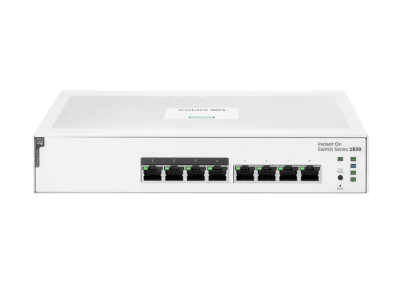

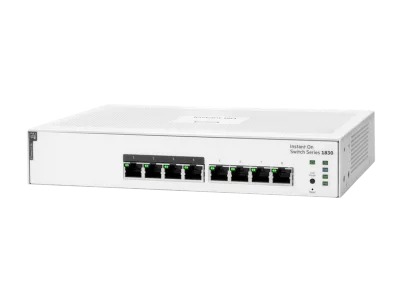

Aruba JL811A, Aruba Instant On 1830 8G 65W Switch (4 x 10/100/1000 PoE+, 4 x 10/100/1000)

Brand
 Aruba

Description
 Aruba JL811A, Aruba Instant On 1830 8G 65W Switch (4 x 10/100/1000 PoE+, 4 x 10/100/1000)

SKU
 JL811A

I/O ports and slots
 8 RJ-45 autosensing 10/100/1000 ports
 IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
 Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Processor and memory
 ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

Throughput (Mpps)
 11.90 Mpps

Capacity
 16 Gbps

MAC address table size
 8,000 entries

Reliability MTBF (years)
 105.9

Acoustics
 Fanless

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting
 Supports wall-mounting with ports facing either up or down
 Supports under-table mounting using the brackets provided
 Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Transceivers
 -

Device management
 Instant On Cloud; Web browser; SNMP Manager

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 1.0A/0.5A
 Maximum power rating 100-127V: 86.07W, 200-220V: 83.67W
 Idle power 100-127V: 8.3W, 200-220V: 8.2W
 PoE power 65 W Class 4 PoE

Power supply
 Internal power supply

Dimensions (D x W x H)
 7.68 x 9.65 x 1.72 in (19.51 x 24.51 x 4.39 cm)

Weight
 3.40 lb (1.54 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1830
