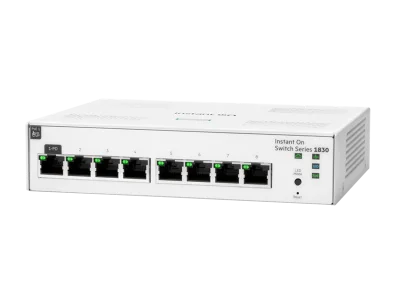

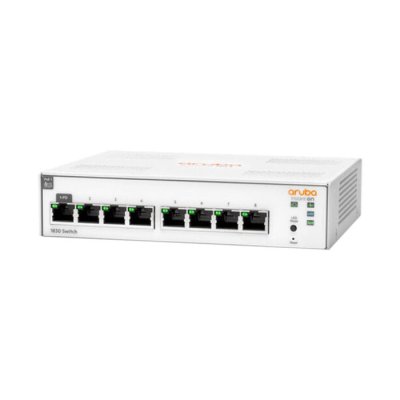

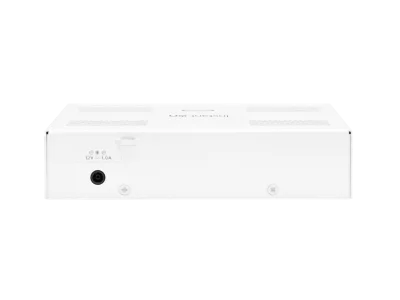

Aruba JL810A, Instant On 1830 8G Switch (8x 10/100/1000)

Brand
 Aruba

Description
 Aruba JL810A, Instant On 1830 8G Switch (8x 10/100/1000)

SKU
 JL810A

I/O ports and slots
 8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1)
 (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
 Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Processor and memory
 ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

Throughput (Mpps)
 11.90 Mpps

Capacity
 16 Gbps

MAC address table size
 8,000 entries

Reliability MTBF (years)
 188.2

Acoustics
 Fanless

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Supports table-top mounting
 Supports wall-mounting with ports facing either up or down
 Supports under-table mounting using base surface mounting holes

Transceivers
 -

Device management
 Instant On Cloud; Web browser; SNMP Manager

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 12V 1.0A
 Maximum power rating 100-127V: 8.09W, 200-220V: 8.05W
 Idle power 100-127V: 5.8W, 200-220V: 5.9W
 PoE power 13W max Class 3 PD

Power supply
 External power adapter (included)

Dimensions (D x W x H)
 6.18 x 6.81 x 1.53 in (15.7 x 17.3 x 3.91 cm)

Weight
 1.70 lb (0.77 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1830
