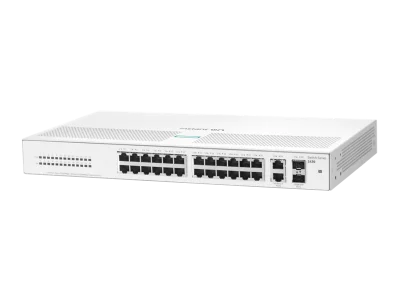

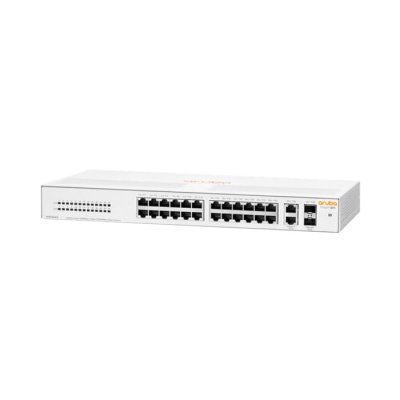

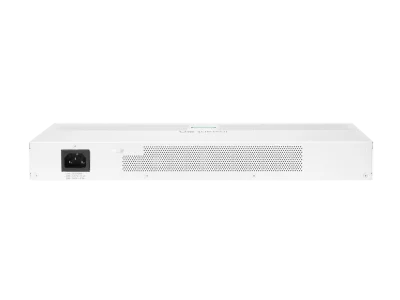

Aruba R8R50A, Instant On 1430 26G 2SFP Switch

Brand
 Aruba

Description
 Aruba R8R50A, Instant On 1430 26G 2SFP Switch

SKU
 R8R50A

I/O ports and slots
 26 RJ-45 autosensing 10/100/1000 ports
 (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full;
 1000BASE-T: full only
 2 SFP 1GbE ports

Processor and memory
 32Mb Flash; Packet buffer size: 12.0 Mb

Throughput (Mpps)
 41.68 Mpps

Capacity
 56 Gbps

MAC address table size
 16384 entries

Reliability MTBF (years)
 171.9

Acoustics
 Fanless

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting using the brackets provided
 Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
 Supports under-table mounting using the brackets provided
 Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term
 reliability, product should not be mounted upside-down

Transceivers
 HPE Networking Instant On 1G SFP LC LX 10km SMF Transceiver (S0G20A)
 HPE Networking Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Device management
 Unmanaged

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 0.4A / 0.3A
 Maximum power rating 16.4W
 Idle power 8W
 PoE power

Power supply
 Internal Power Supply

Dimensions (D x W x H)
 8.85 x 15.27 x 1.72 in (22.5 x 38.8 x 4.4 cm)

Weight
 5.00 lb (2.27 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1430
