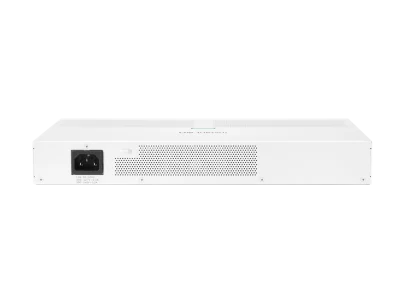

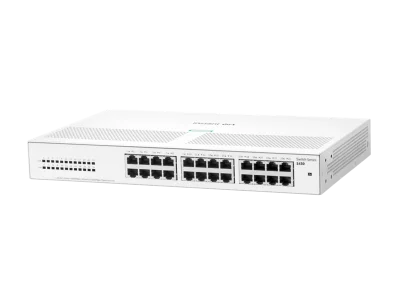

Aruba R8R49A, Instant On 1430 24G Switch

Brand
 Aruba

Description
 Aruba R8R49A, Instant On 1430 24G Switch

SKU
 R8R49A

I/O ports and slots
 24 RJ-45 autosensing 10/100/1000 ports
 (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full;
 1000BASE-T: full only

Processor and memory
 128Kb EEPROM; Packet buffer size: 2.0 Mb

Throughput (Mpps)
 35.71 Mpps

Capacity
 48 Gbps

MAC address table size
 8192 entries

Reliability MTBF (years)
 199.5

Acoustics
 Fanless

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting using the brackets provided
 Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
 Supports under-table mounting using the brackets provided
 Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term
 reliability, product should not be mounted upside-down

Device management
 Unmanaged

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 0.3A / 0.2A
 Maximum power rating 11.7W
 Idle power 3.2W
 PoE power

Power supply
 Internal Power Supply

Dimensions (D x W x H)
 8.86 x 13.38 x 1.72 in (22.5 x 34 x 4.4 cm)

Weight
4.20 lb (1.91 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1430
