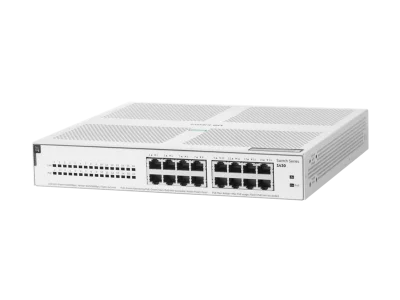

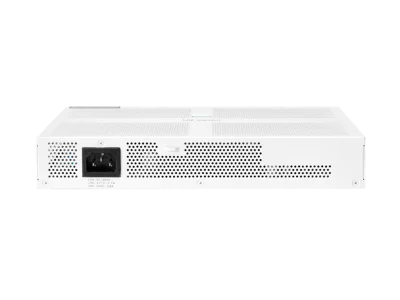

Aruba R8R47A, Instant On 1430 16G POE 124W Switch

Brand
 Aruba

Description
 Aruba R8R47A, Instant On 1430 16G POE 124W Switch

SKU
 R8R48A

I/O ports and slots
 16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
 (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASET/100BASE-TX: half or full;
 1000BASE-T: full only

Processor and memory
 128Kb EEPROM; Packet buffer size: 2.0 Mb

Throughput (Mpps)
 23.80 Mpps

Capacity
 32 Gbps

MAC address table size
 8192 entries

Reliability MTBF (years)
 126.1

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting using the brackets provided
 Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
 Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term
 reliability, product should not be mounted upside-down

Device management
 Unmanaged

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-127VAC / 200-240VAC
 Current 1.7A /0.8A
 Maximum power rating 147W
 Idle power 5W
 PoE power 124W Class 4 PoE

Power supply
 Internal Power Supply

Dimensions (D x W x H)
 10.23 x 10.83 x 1.72 in (26 x 27.5 x 4.4 cm)

Weight
 4.60 lb (2.09 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1430
