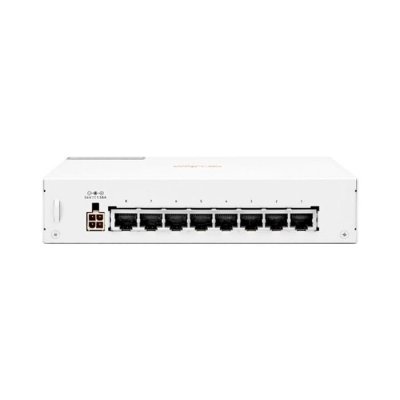

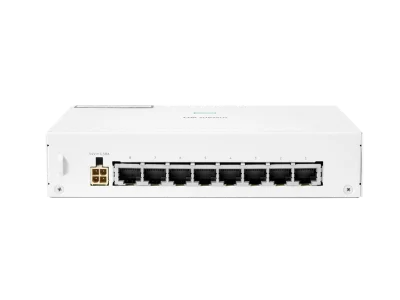

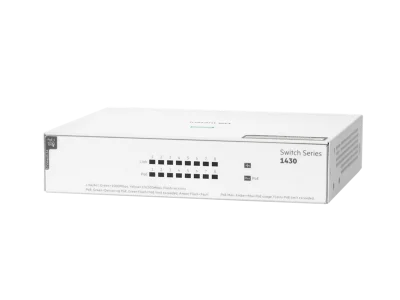

Aruba R8R46A, Instant On 1430 8G POE 64W Switch

Brand
 Aruba

Description
 Aruba R8R46A, Instant On 1430 8G POE 64W Switch

SKU
 R8R46A

I/O ports and slots
 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
 (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type
 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Processor and memory
 128Kb EEPROM; Packet buffer size: 2.0 Mb

Throughput (Mpps)
 11.90 Mpps

Capacity
 16 Gbps

MAC address table size
 8192 entries

Reliability MTBF (years)
 131.1

Acoustics
 Fanless

Environment
 Operating temperature: 32°F to 104°F (0°C to 40°C)
 Altitude: up to 10,000 ft (3 km)

Mounting
 Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
 Supports table-top mounting
 Supports rack-mounting using the brackets provided
 Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
 Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-
 term reliability, product should not be mounted upsidedown

Device management
 Unmanaged

Electrical characteristics
 Frequency 50Hz/60Hz
 AC voltage 100-240VAC
 Current 2A (54VDC - 1.58A)
 Maximum power rating 90W
 Idle power 4.1W
 PoE power 64W Class 4 PoE

Power supply
 External Power Adapter

Dimensions (D x W x H)
 5.91 x 6.96 x 1.45 in (15 x 17.7 x 3.7 cm)

Weight
 1.70 lb (0.77 kg)

Warranty
 Limited Lifetime

Datasheet : HPE Networking Instant On Switch Series 1430
