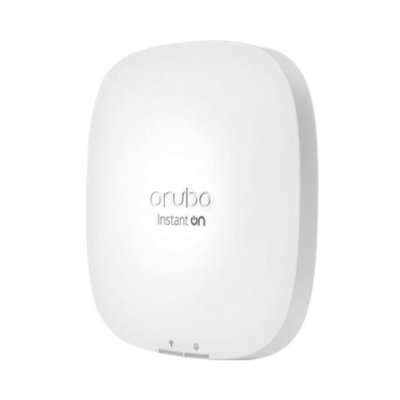

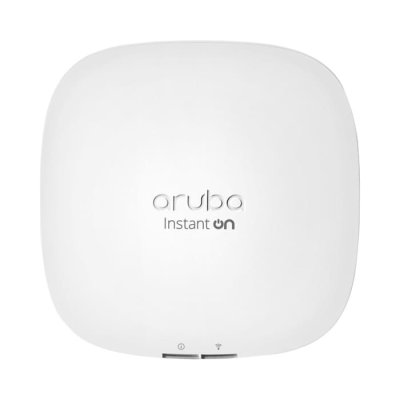

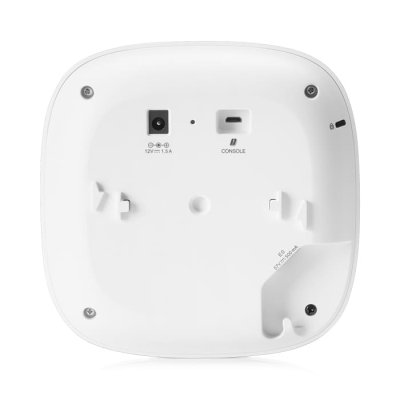

Aruba R4W02A, Instant On AP22 (RW) Wi-Fi 6, 802.11ax, 2x2 Access Point

Brand
 Aruba

Description
Aruba R4W02A, Instant On AP22 (RW) Wi-Fi 6, 802.11ax, 2x2 Access Point

SKU
 R4W02A

Radios
 Dual radio for simultaneous dual-band operation
 5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
 2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)

Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)
 5GHz band: +21dBm (+18dBm perchain, 3dB MIMO gain)
 2.4Ghz band: +21dBm (+18dBm perchain, 3dB MIMO gain)

Interface
 Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
 DC power connector (12V) Bluetooth
 Low Energy (BLE) radio LED status
 indicators (2) Reset/LED control button
 Kensington security slot

Antenna
 Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of
 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).

Environmental & reliability
 Operating temperature: 0° C to +40° C (+32° F to +104° F)
 MTBF: 795khrs (91yrs) at +25° C

Mounting
 The access point ships with a white mount clip that can attach to both wall and ceiling.
 You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment

Management options
 Instant On mobile application (Android& iOS)
 Cloud Portal: Portal.ArubaInstantOn.com

Industry certifications
 UL 2043 plenum rating
 EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
 Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3

Power Consumption
 Power over Ethernet (POE): 802.3af (class 3)

 Max power consumption (worst-case):
 10.1W (PoE), 8.8W (DC)
 DC power (12V)

 Note: Power sources are sold separately unless you purchase the bundle SKU which comes with power options.

Dimension
 160mm x 160mm x 37mm, excluding mount accessories

Weight
 500g

Warranty
 2 Years

Datasheet : Aruba Instant On AP22
