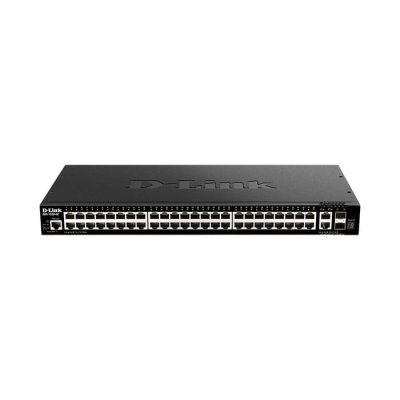

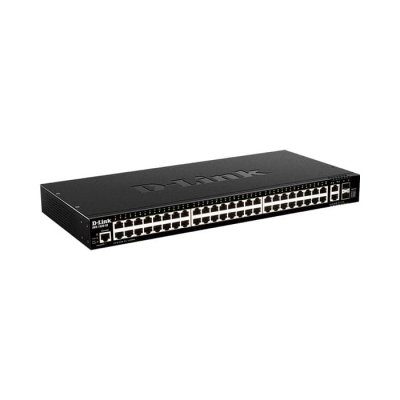

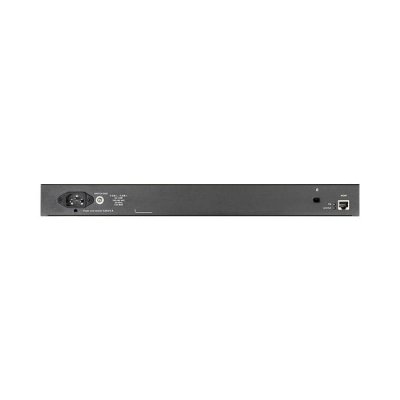

D-Link DGS-1520-52, 52-port Gigabit Layer 3 Stackable Smart Managed Switch with 4-port 10G Uplinks

Brand
 D-Link

Description
 D-Link DGS-1520-52, 52-port Gigabit Layer 3 Stackable Smart Managed Switch with 4-port 10G Uplinks

SKU
 DGS-1520-52

Hardware Version
 A1

Size
 19 standard rack width, 1U height

Interfaces
 48x 10/100/1000Base-T Ports
 2x 10GBase-T Ports
 2x 10G SFP+ Ports

Port Standards
 IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
 IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
 IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
 IEEE 802.3az Energy-Efficient Ethernet (EEE)
 IEEE 802.3x Flow Control
 IEEE 802.3ae 10 Gigabit Ethernet
 IEEE 802.3af/at
 IEEE 802.3bz

Console Port
 RJ-45 port for out-of-band CLI management

Media Interface Exchange
 Auto or configurable MDI/MDIX

Switching Capacity
 176 Gbps

Transmission Method
 Store-and-Forward

MAC Address Table
 Up to 16,384 entries per device

Static MAC Addresses
 Up to 512 static MAC entries

Maximum Forwarding Rate
 95.24 Mpps

PoE
 PoE Standard : N/A
 PoE Power Budget : N/A

LEDs
 Power/Stacking ID/Fan (per device)
 Link/Activity/Speed (per 10/100/1000 Mbps port, per 2.5G PoE port, per Gigabit SFP port, per 10G SFP+ port)

Operating Temperature
 -5 - 50°C (23 - 122 °F)

Certifications
 EMI : CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A

Power Input
 100 - 240 VAC

Max Power Consumption
 51.2 W

Standby Power Consumption
 25.5 W/100 V
 26.8 W/240 V

Humidity
 10% - 95% RH

MTBF
 364888 Hours

Dimensions (L x W x H)
 441 x 207.4 x 44 mm (17.36 x 8.17 x 1.73 in)

Weight
 2.78 kg (6.13 lbs)

Warranty
 5 Years

Datasheet : DGS-1520 Series
