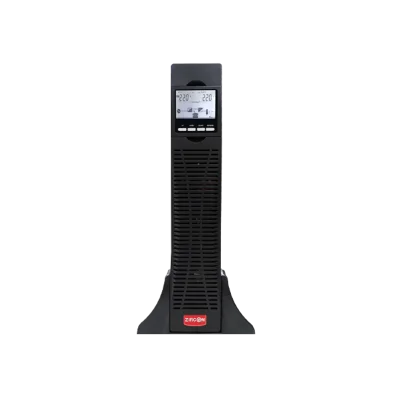

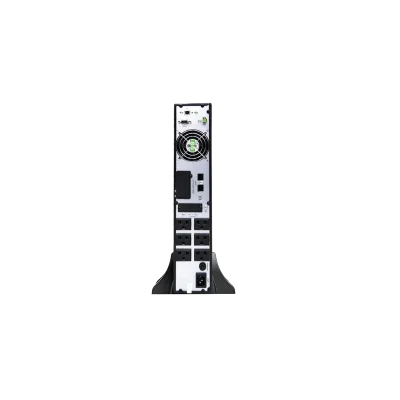

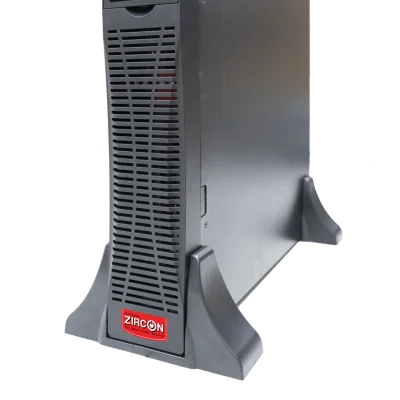

Zircon UPS True Online 1500VA/1350W (ZC-RTIII-2Y_1500VA/1350W)

Brand
 Zircon

Description
 Zircon True Online UPS ZC-RTIII/ 1500VA/1350W/ Rack & Tower type

SKU
 ZC-RTIII-2Y_1500VA/1350W

Specifications

Rating
VA                                         1500VA
WATT                                     1350W

Input
Phase                                     Single Phase & Ground
Rated Voltage                          200/208/220/230/240VAC
Voltage Range                         110-290V*
Frequency Range                      50Hz-60Hz (Auto-Detect)
Power Factor                            > 0.98
Current THDi                            <7% at 100% Non-Linear Load
Bypass Voltage Range                Max. Voltage; -45% Optional -20%~-30%, Frequency Protection Range: +/-10% ECO Range
ECO Range                              Same As The Bypass
Generator Input                        Support

Output
Phase                                     Single Phase & Ground
Rated Voltage                          200/208/220/230/240VAC
Power Factor                            0.9
Voltage Regulation                    +/- 2%
Frequency - Utility Mode            50Hz or 60Hz (Synchronized to Mains)
               - Battery Mode          50Hz-60Hz  +/- 0.02% Hz
Crest Factor                             3:1
THD                                        < 3% with Linear Load
                                             < 5% with non  Linear Load
Wave Form                              Pure Sine Wave

Efficiency
AC Mode ( Full Load )                Up to 90%
​Battery  Mode ( Full Load )         >88%
ECO Mode ( Full Load )              >94%

Battery
Voltage                                   36Vdc
Capacity (Standard Unit)             12V/9Ah
Back up Time                           Full load 5 min, 15-30 min ( Depend on load), Estimated remaining time display on the LCD
Recharge Time to 90%               4-5 Hours
Charging current                      1.4A
Battery Socket                         Anderson Like PowerPole Modular Connectors

Transfer Time
Utility to Battery; 0ms, Utility to Bypass <4ms

Display
Status LED & LCD                   Load/Battery/Input/Output/Operating Mode information
Reading on the LCD                Load/Battery/Input/Output/Operating Mode information

Physical
Weight (Kilogram)                     18.1
Input Connection                      IEC320 C14-10A
Output Connection                   Universal x 6, IEC320 C19-16A x1
External Battery Connection        Anderson like PowerPole Modular connectors

Communication Interface
Smart RS232/USB Port                Support Windows Family, Linux, FreeDSB, etc.
Communication slot                   SNMP Card (independent to RS232)
RJ 45                                      Built-in Power Surge, Lightning Protection Device

Environment
Operating Temperature              0 °C - 40 ° C
Storage Temperature                 -25  °C - +55 °C
Humidity                                 0-90% non-condensing
Attitude                                  <1500 m. (derating while > 1500m)
Noise                                      <50 dB (at 1 meter)

Standard
Safty                                       CE

Dimension W x D x H (mm.)
 ​440 x 86.5 x 430

Warranty
 2 Years

Datasheet : ZIRCON ZC-RTIII Rating 1kVA, 2KVA, 3kVA
