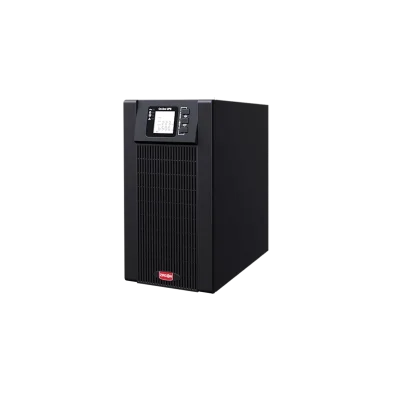

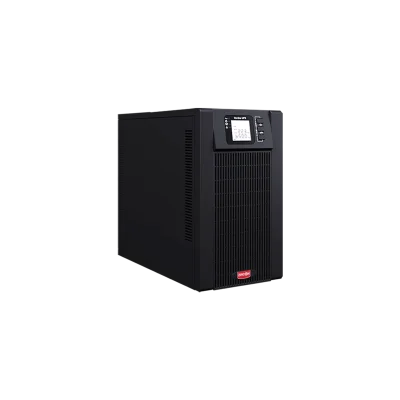

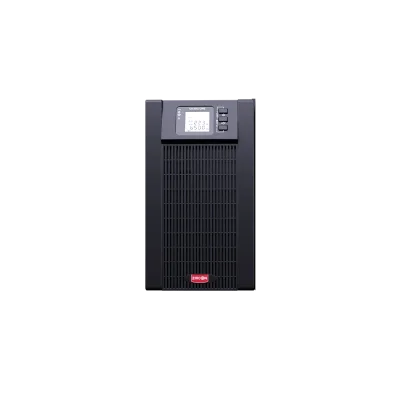

Zircon UPS True Online 1000VA/900W (ZC-MPIII-2Y_1000VA/900W)

Brand
 Zircon

Description
 Zircon True Online UPS ZC-MPII/ 1000VA/900W/ Tower type

SKU
 ZC-MPIII-2Y_1000VA/900W

Specifications

Rating
VA                                         1000VA
WATT                                     900W

Input
Phase                                     Single Phase & Ground
Rated Voltage                          200/208/220/230/240VAC
Voltage Range                         140-290V*
Frequency Range                      40Hz-70Hz (auto-detect)
Power Factor                            >0.99 @100% load (Nominal Input Voltage)
Current THDi                            <6% at 100% non-linear load
Bypass Voltage Range                Bypass high voltage point : 230-264 Vac (Setting in LC, Default: 264Vac), Bypass low voltage point : 170-230 Vac (Setting in LC, Default: 170Vac)
ECO Range                              Same As The Bypass
Generator Input                        Support

Output
Phase                                     Single Phase & Ground
Rated Voltage                          200/208/220/230/240VAC
Power Factor                            0.9
Voltage Regulation                    +/- 1% (Battery Mode)
Frequency - Utility Mode            50Hz or 60Hz (Synchronized to Mains)
               - Battery Mode          50Hz-60Hz  +/- 0.02% Hz
Crest Factor                             3:1
THD                                        < 3% with Linear Load
                                             < 5% with non  Linear Load
Wave Form                              Pure Sine Wave

Efficiency
AC Mode ( Full Load )                Up to 90%
​Battery  Mode ( Full Load )         >88%
ECO Mode ( Full Load )              >94%

Battery
Voltage                                   24Vdc
Capacity (Standard Unit)             12V/9Ah
Back up Time
Recharge Time to 90%               Full load 5 min, 15-30 min (Depend on load), Long time depends on capacity of EBP, 4 Hours recovery to 90% capacity (Typical)
Charging current    - Standard    1A
                           - Special      12A

Transfer Time
Utility to Battery; 0ms, Utility to Bypass <4ms

ALARM
Audible & Visual Reading on the LCD    Line Failure, Battery Low, Overload, System Fault

Display
Status LED & LCD Reading on the LCD    Input/Output Voltage, Frequency, Temperature, Load/battery Level, Charger, Load Capacity, Battery Voltage, Overload, ECO, Warning, Bypass, Battery, Inverter, ETC.

Physical
Weight (Kilogram)                     9.8
Input Connection                      IEC320 C14-10A
Output Connection                   Universal x 6, IEC320 C19-16A x1
External Battery Connection        Anderson like PowerPole Modular connectors

Communication Interface
Smart RS232/USB Port                Support Windows Family, Linux, FreeDSB, etc.
Communication slot                   SNMP Card (independent to RS232)
RJ 45                                      Built-in Power Surge, Lightning Protection Device

Environment
Operating Temperature              0 °C - 40 ° C
Storage Temperature                 -25  °C - +55 °C
Humidity                                 0-90% non-condensing
Attitude                                  <1500 m. (derating while > 1500m)
Noise                                      <50 dB (at 1 meter)

Standard
Safty                                       IEC/EN62040-1, IEC/EN60950-1
EMC                                       IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC6100-4-4 , IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
ISO                                         ISO9001, ISO14001

Dimension W x D x H (mm.)
 144 x 209 x 293

Warranty
 2 Years

Datasheet : ZIRCON ZC-MPIII Rating 1kVA, 2KVA, 3kVA
