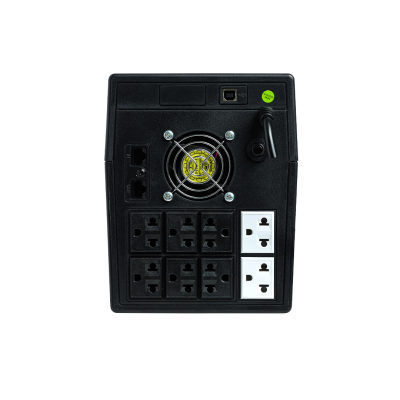

Zircon UPS Line Interactive 1500VA/1050W (PI-1500VA/1050W)

Brand
 Zircon

Description
 Zircon Line Interactive UPS/ Pi-1500/ 1500VA/1050W/ Sinewave, Digital Display (Tower type)

SKU
 PI-1500VA/1050W

Specifications

Rating
VA                                         1500VA
WATT                                     1050W

Input
Voltage                                  220 VAC +/-25%
 Frequency                              50/60Hz. +/-10% (Auto Sensing)

Output
Voltage                                  220 VAC +/-10%(AVR), +/-5%(Battery)
Frequency                               50Hz. +/-0.1%
Wave Form                              Pure Sine Wave

System Protection
 System Design                        Line Interactive UPS with Stabilizer, Microprocessor Control
 Transfer Time                          Typical 2 ms.
 Surge Energy Dissipation           320 Joules (6500A)
 Noise Filter                             EMI Suppression
 Overload & Short Circuit           Reset Fuse Protection

Battery
Type                                    Maintenance Free Sealed Lead-acid Battery
Battery                                 1-1.2kVA 12V 7.8Ahx2 / 1.5Kva 12V 9.0Ahx2 / 2Kva 12V 9.0Ahx2
Recharge Time                       4-6 Hours (90% After Fully Discharged)
Backup Time                          15-60 Min./5 Min at Full load

Indicator
LED Display                           AC Mode, Battery Mode, Input Voltage, Output voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault
                                          & Battery Replace

Environment
Ambient Temperature              0 to +40 ºC
Audible Noise                        < 40db (1 Meter)
Helative Humidity                    90% (Non-Condensing)
Safety                                  IEC/EN62040-1;IEC/EN60950-1
Electromagnetic Compatibility   IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5; IEC61000-4-6;IEC61000-4-8

Software
USB Port                                Window 2000, 2003, XP, Vista, 2008, 7, Linux, Unix, Max

Standard
Regular Approvals                    TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS

Dimension WxDxH (mm.)
 380 x 158 x 198

Weight
 11.1 kg.

Warranty
 2 Years

Datasheet : ZIRCON Pi : 1000VA – 2000VA
