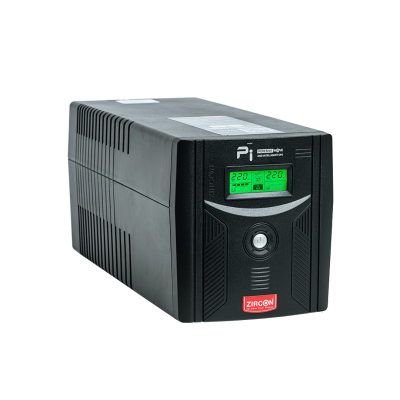

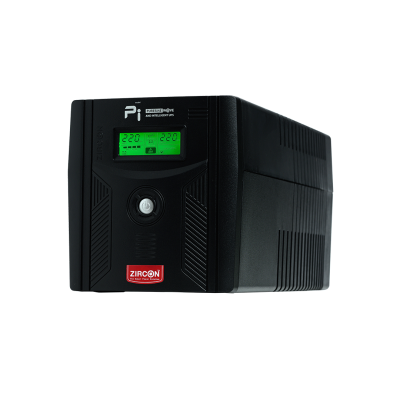

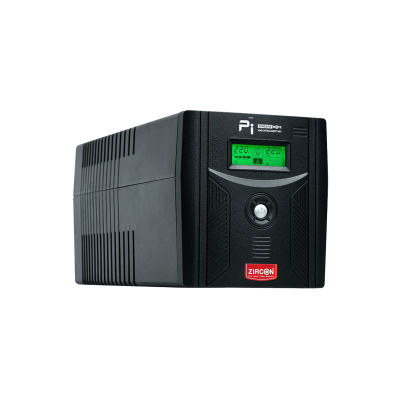

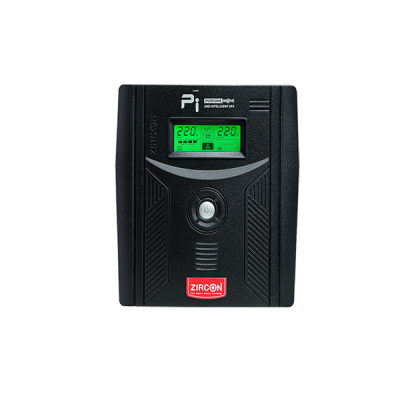

Zircon UPS Line Interactive 1200VA/840W (PI-1200VA/840W)

Brand
 Zircon

Description
 Zircon Line Interactive UPS/ Pi-1200/ 1200VA/840W/ Sinewave, Digital Display (Tower type)

SKU
 PI-1200VA/840W

Specifications

Rating
VA                                         1200VA
WATT                                     840W

Input
Voltage                                  220 VAC +/-25%
Frequency                               50/60Hz. +/-10% (Auto Sensing)

Output
Voltage                                  220 VAC +/-10%(AVR), +/-5%(Battery)
Frequency                               50Hz. +/-0.1%
Wave Form                              Pure Sine Wav

System Protection
System Design                         Line Interactive UPS with Stabilizer, Microprocessor Control
Transfer Time                           Typical 2 ms.
Surge Energy Dissipation            320 Joules (6500A)
Noise Filter                              EMI Suppression
Overload & Short Circuit            Reset Fuse Protection

Battery
Type                                      Maintenance Free Sealed Lead-acid Battery
Battery                                    1-1.2kVA 12V 7.8X2 / 1.5kVA 12V 9.0X2  / 2kVA 12V 9.0X2
Recharge Time                         4-6 Hours (90% after fully discharged)
Backup Time                            15-60 Min./ 5 Min at Full Load

Indicator
LED Display                             AC Mode, Battery Mode, Input Voltage, Output voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault
                                            & Battery Replace

Environment
Ambient Temperature                0 to +40 ºC
Audible Noise                          < 45db(1 Meter)
Humidity                                 90% (Non-Condensing)
Safety                                     IEC/EN62040-1;IEC/EN60950-1
Electromagnetic Compatibility     IEC/EN62040-2;IEC61000-4-2;IEC61000-4-3;IEC61000-4-4;IEC61000-4-5;IEC61000-4-6;IEC61000-4-8

Software
USB Port                                 Window 2000, 2003, XP, Vista, 2008, 7, Linux, Unix, Max

Standard
Regular Approvals                     TISI1291:2553, 2555, ISO9001:2015, ISO14001, CE, FCC, RoHS

Dimension W x D x H (mm.)
 338 x 149.5 x 162

Weight
 8.1 kg

Warranty
 2 Years

Datasheet : ZIRCON PI 1000VA – 2000VA
