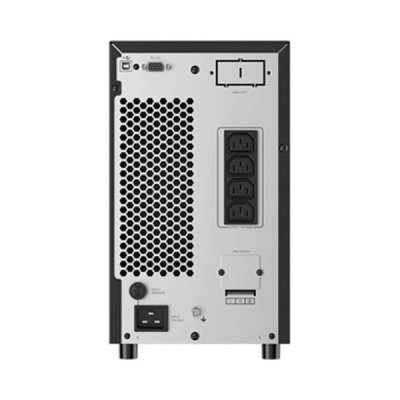

Delta UPS NX-Series 3000VA/2700W (NX-3K-3Y)

Brand
 Delta

Description
 Delta UPS NX-Series 3000VA/2700W (NX-3K-3Y)

SKU
 NX-3K-3Y

Power Rating                                             3000VA/2700W

Input
Nominal Voltage                                          220/230 Vac, 1P2W+PE
Voltage Range                                            180-285 Vac (100% load); 120-180 Vac (60-100% load)
Frequency                                                 40-70 Hz
Power Factor                                              > 0.99 (100% load)
Connection                                                IEC C20 x1

Output
Nominal Voltage                                         200(1)/208(1)/220/230/240 Vac, 1P2W+PE
Voltage Regulation                                      ±1%
Frequency                                                 50/60 ± 3 Hz
Total Harmonic Distortion (THDv)                    3% (linear load)
Power Factor                                              0.9
Connection                                                IEC C13 x4 + Terminal
Current Crest Ratio                                      3:1

Communication Interface
Display                                                      LCD display with LED indicators
Port                                                          USB, RS-232, Mini slot
Audible Alarm                                            Battery mode, Low battery, Overload, Fault, Bypass mode

Conformance
Safety                                                       CE, TISI
EMC                                                         IEC 62040-2
Performance                                              IEC 62040-3
Sustainability                                              RoHS, REACH

Environment
Operating Temperature                                0 to 50 °C (40 to 50 °C de-rating to 70% load)
Humidity                                                   20-90% (non-condensing)
Audible Noise(3)                                         < 45 dBA
Altitude                                                     0-3,000 m (derating 1%/100 m from 1,000-3,000 m)
Storage Temperature                                   -20 to 50 °C
Ingress Protection                                       IP20

Battery
Battery Type                                              VRLA
Nominal Voltage Standard                             72 Vdc
Quantity                                                    6 pcs
Runtime 100% load                                      3.6 mins
            70% load                                       6.9 mins
Charge Current                                           1 A

Dimensions (W x D x H)
 190 x 421 x 318 mm

Weight
 27 kg

Warranty
 3 Years Onsite ทั่วประเทศ service (เสียเปลี่ยนตัวใหม่ new box)

Datasheet : Delta UPS - Amplon N Gen3 UPS
