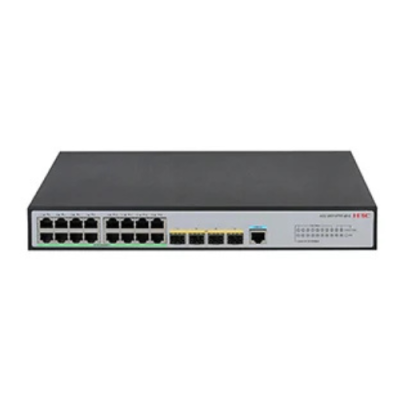

H3C S5016PV5-EI-S L2 Ethernet Switch (LS-5016PV5-EI-S-GL)

Brand
 H3C

Description
 H3C S5016PV5-EI-S L2 Ethernet Switch with 16*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports, (AC)

SKU
 LS-5016PV5-EI-S-GL

Switching capacity
 40Gbps

Packet forwarding rate
 30Mpps

Management port
 1 console port

Latency (64byte/µs)
 GE: < 5µs
 10GE < 3µs

10/100/1000 Base-T port
 16

SFP port
 4

Copper port features
 Half-duplex, full-duplex, auto-negotiation
 MDI/MDI-X

Ethernet functions
 LLDP
 Static MAC configuration
 MAC address learning limit
 Port mirror and flow mirror
 Link aggregation (up to 8 ports per group)
 Port isolation
 STP/RSTP/MSTP
 IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
 EEE 802.3az

VLAN
 802.1Q (up to 4K VLAN)
 Protocol-based VLAN
 Voice VLAN
 IP subnet based VLAN
 MAC based VLAN
 GUEST VLAN

Security
 Hierarchical user management and password protection
 SSHv2
 SSL
 Specific IP address based FTP logging and password mechanism
 Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet
 Prevent Dos attack
 IP＋MAC+PORT+VLAN binding
 IEEE 802.1x
 SAVI source address validity authentication
 Radius, HWTACACS
 SNMPv3
 Broadcast suppression
 Prevent CPU attack

System Management
 Console/AUX Modem/Telnet/SSH2.0/CLI
 Loading and upgrading through FTP/TFTP/Xmodem/SFTP
 SNMP V1/V2c/V3
 NTP
 HTTP/HTTPS
 System log
 Cluster management
 RFC 1213 MIB-2 Stands for Management Information Base

Input voltage range
 AC: 100V～240V AC，50/60Hz

MAC address entries
 8192

VLAN table
 4094

VLAN interface
 32

Jumbo frame length
 10000

Fan NUM
 Fanless

Power consumption
 MIN: 7W
 MAX: 16W

Dimensions (W × D x H)
 330 x 230 x 43.6mm

Weight
 2kg

Warranty
 5 Years
