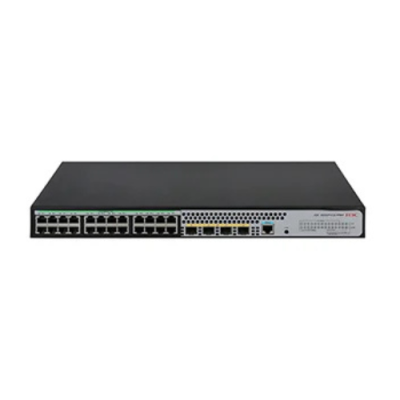

H3C S5024PV5-EI-HPWR L2 Ethernet Switch (LS-5024PV5-EI-HPWR-GL)

Brand
 H3C

Description
 H3C S5024PV5-EI-HPWR L2 Ethernet Switch with 24*10/100/1000BASE-T PoE+ Ports (AC 370W) and 4*1000BASE-X SFP Ports, (AC)

SKU
 LS-5024PV5-EI-HPWR-GL

Switching capacity
 56Gbps

Packet forwarding rate
 42Mpps

Management port
 1 console port

10/100/1000 Base-T port
 24

SFP port
 4

Copper port features
 Half-duplex, full-duplex, auto-negotiation
 MDI/MDI-X

Ethernet functions
 LLDP
 Static MAC configuration
 MAC address learning limit (up to 8K)
 Port mirror and flow mirror
 Link aggregation (up to 8 ports per group)
 Port isolation
 STP/RSTP/MSTP
 IEEE 802.3ad（Dynamic link aggregation）, static port aggregation

VLAN
 802.1Q (up to 4K VLAN)
 Protocol-based VLAN
 IP subnet based VLAN
 MAC based VLAN
 GUEST VLAN

Security
 Hierarchical user management and password protection
 SSHv2
 SSL
 Specific IP address based FTP logging and password mechanism
 Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet
 Prevent Dos attack
 IP＋MAC+PORT+VLAN binding
 IEEE 802.1x
 SAVI source address validity authentication
 Radius, HWTACACS
 SNMPv3
 Broadcast suppression
 Prevent CPU attack

System Management
 Console/AUX Modem/Telnet/SSH2.0/CLI
 Loading and upgrading through FTP/TFTP/Xmodem/SFTP
 SNMP V1/V2c/V3
 NTP
 System log
 Cluster management

Input voltage range
 AC: 100V～240V AC，50/60Hz

MAC address entries
 8192

VLAN table
 4094

VLAN interface
 32

Jumbo frame length
 10000

Fan NUM
 1

Power consumption
 MIN: 19W
 MAX: 448W　

PoE+
 370W

Dimensions (W × D x H)
 440 × 260 × 43.6mm

Weight
 6kg

Warranty
 5 Years
