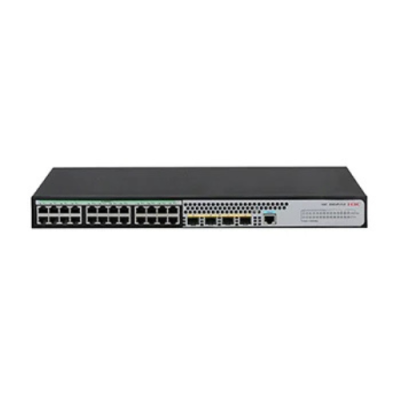

H3C S5024PV5-EI L2 Ethernet Switch (LS-5024PV5-EI-GL)

Brand
 H3C

Description
 H3C S5024PV5-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X Ports, (AC)

SKU
 LS-5024PV5-EI-GL

Switching capacity
 56Gbps

Packet forwarding rate
 42Mpps

10/100/1000 Base-T port
 24

SFP port
 4

Copper port features
 Half-duplex, full-duplex, auto-negotiation
 MDI/MDI-X

Ethernet functions
 LLDP
 Static MAC configuration
 MAC address learning limit
 Port mirror and flow mirror
 Link aggregation (up to 8 ports per group)
 Port isolation
 STP/RSTP/MSTP
 IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
 EEE 802.3az

VLAN
 802.1Q (up to 4K VLAN)
 Protocol-based VLAN
 Voice VLAN
 IP subnet based VLAN
 MAC based VLAN
 GUEST VLAN

Security
 IP+MAC+PORT+VLAN binding
 IEEE 802.1x
 SAVI source address validity authentication
 Radius, HWTACACS
 SNMPv3
 Broadcast suppression
 Prevent CPU attack

System Management
 Console/AUX Modem/Telnet/SSH2.0/CLI
 Loading and upgrading through FTP/TFTP/Xmodem/SFTP
 SNMP V1/V2c/V3
 NTP
 System log
 Cluster management
 RFC 1213 MIB-2 Stands for Management Information Base

Input voltage range
 AC: 100V～240V AC，50/60Hz

MAC address entries
 8192

VLAN table
 4094

VLAN interface
 32

Jumbo frame length
 10000

Fan NUM
 Fanless

Power consumption
 MIN: 9W
 MAX: 23W

Dimensions (W × D x H)
 440 × 160 × 43.6 mm

Weight
 2.5 kg

Warranty
 5 Years
