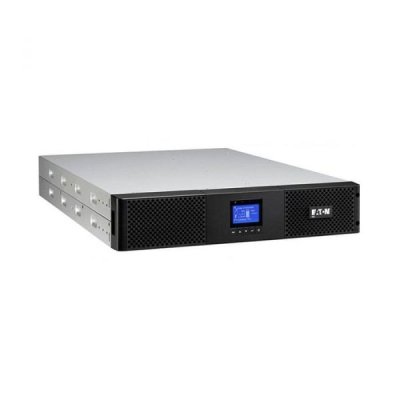

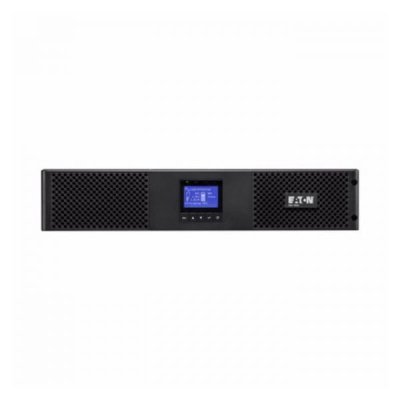

EATON 9SX 2000IR, 230V, Rackmount 2U (9103-73924)

Brand
 Eaton

Description
 EATON 9SX 2000IR, 230V, Rackmount 2U (9103-73924)

SKU
 9103-73924

Format
 Tower or Rack 2U

Capacity (VA/Watts)
 2000 VA/1800 W

Technology
 On-line double-conversion with Power Factor Correction (PFC) system

Electrical characteristics
 Nominal voltage : 200/208/220/230/240V
 Input voltage range : 200-276V without derating (up to 140-276V with derating)
 Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter mode

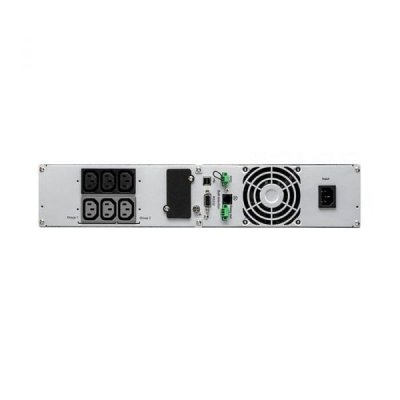

Connections
 Input : 1 IEC C14 (10A)
 Outputs : 8 IEC C13 (10A) sockets

Communication
 Communication ports
 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

 Communication slot
 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards

Operating conditions, standards and approvals
 Typical noise level : 45dB
 Safety : IEC/EN 62040-1, UL 1778, CSA 22.2
 EMC : IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
 Approvals & marking : CE /CB report (TUV) / cULus / EAC / RCM / BIS (Tower models only) / KCC (Tower models only)

Warranty
 3 Years On-Site

Datasheet : Eaton 9SX UPS


*ผิด ตก ยกเว้น Errors and omissions excepted (E&OE)*

หมายเหตุ  จำนวนสินค้าในสต๊อกมีการเปลี่ยนแปลงทุกวัน กรุณาตรวจสอบจำนวนสินค้า และราคาก่อนการสั่งซื้อนะคะ
