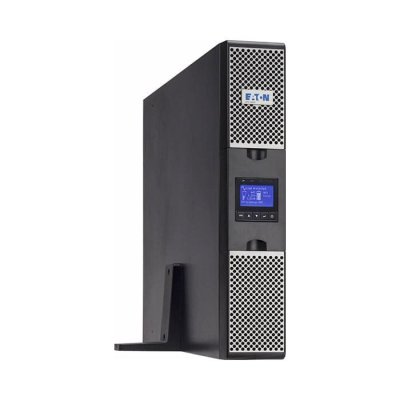

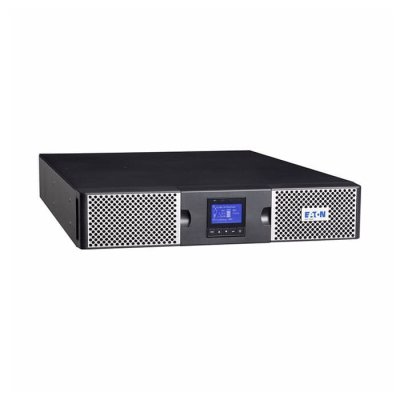

Eaton 9PX 3000i RT2U (9103-83800)

Brand
 Eaton

Description
 Eaton 9PX 3000i RT2U (9103-83800)

SKU
 9103-83800

Capacity (VA/W)
 3000VA/3000W

Format
 RT2U (tower/rack 2U)

Technology
 On-line double conversion with Power Factor Correction (PFC) system

Electrical Characteristics
 Nominal voltage:  200/208/220/230/240V
 Input voltage range:  176-276V without derating (up to 100-276V with derating)
 Input frequency range:  40-70Hz, 50/60Hz autoselection, frequency converter mode

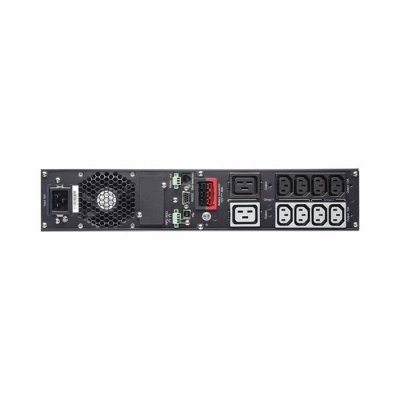

Connections
 Input: 1 IEC C20 (16A) or terminal block on HotSwap MBP HW (Hard-Wired)
 Outputs: 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
 Outputs on HotSwap models:  4 FR/Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version)

Battery
 Typical backup times* : 1200W
 Battery management:  ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic
 recognition of external battery units

Interface
 Communication ports
 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay

 Communication slot
 1 slot for Network-M2, INDGW-M2 or Relay-MS cards

Operating conditions, Standards and Approvals
 Typical noise level:  40dB
 Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
 EMC:  IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
 Approvals & markings: CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Dimensions
 86.5 x 440 x 450

Weight
 27.6 kg

Warranty
 3 Years On-Site

Datasheet : Eaton 9PX UPS
