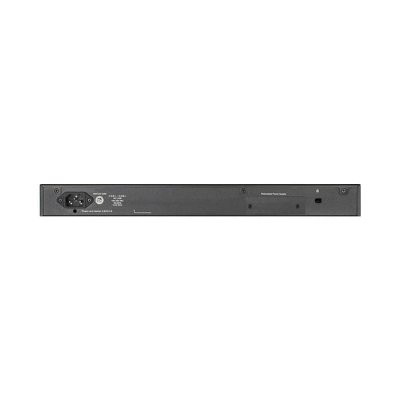

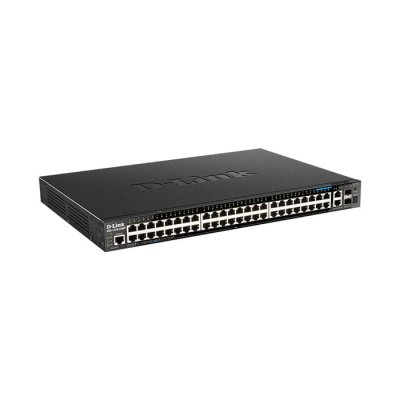

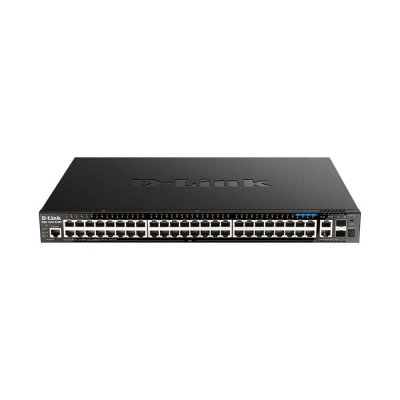

D-Link DGS-1520-52MP, 52-port Gigabit Layer 3 Stackable Smart Managed PoE (370W) Swith with 4-port 2.5G & 4-port 10G Uplinks

Brand
 D-Link

Description
 D-Link DGS-1520-52MP, 52-port Gigabit Layer 3 Stackable Smart Managed PoE (370W) Swith with 4-port 2.5G & 4-port 10G Uplinks

SKU
 DGS-1520-52MP

Hardware Version
 A1

Size
 19 standard rack width, 1U height

Interfaces
 44x 10/100/1000Base-T PoE
 4x 2.5GBase-T PoE Ports
 2x 10GBase-T Ports
 2x 10G SFP+ Ports

Port Standards
 IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
 IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
 IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
 IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
 IEEE 802.3az Energy-Efficient Ethernet (EEE)
 IEEE 802.3x Flow Control
 IEEE 802.3ae 10 Gigabit Ethernet
 IEEE 802.3af/at
 IEEE 802.3bz

Console Port
 RJ-45 port for out-of-band CLI management

Media Interface Exchange
 Auto or configurable MDI/MDIX

Switching Capacity
 188 Gbps

Transmission Method
 Store-and-Forward

MAC Address Table
 Up to 16,384 entries per device

Static MAC Addresses
 Up to 512 static MAC entries

Maximum Forwarding Rate
 139.88 Mpps

PoE
 PoE Standard : IEEE802.3at, IEEE802.3af
 PoE Power Budget : 370 W, 740 W (with RPS)

LEDs
 Power/Stacking ID/Fan (per device)
 Link/Activity/Speed (per 10/100/1000 Mbps port, per 2.5G PoE port, per Gigabit SFP port, per 10G SFP+ port)

Operating Temperature
 -5 - 50°C (23 - 122 °F)

Certifications
 EMI : CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A

Power Input
 100 - 240 VAC

Max Power Consumption
 459.5 W (PoE On);
 66.3 W (PoE Off )

Standby Power Consumption
 39.8 W/100 V;
 40.7 W/240 V

Humidity
 10% - 95% RH

MTBF
 328174 Hours

Dimensions (L x W x H)
 441 x 308.5 x 44 mm (17.36 x 12.15 x 1.73 in)

Weight
 4.80 kg (10.58 lbs)

Warranty
 5 Years

Datasheet : DGS-1520 Series
